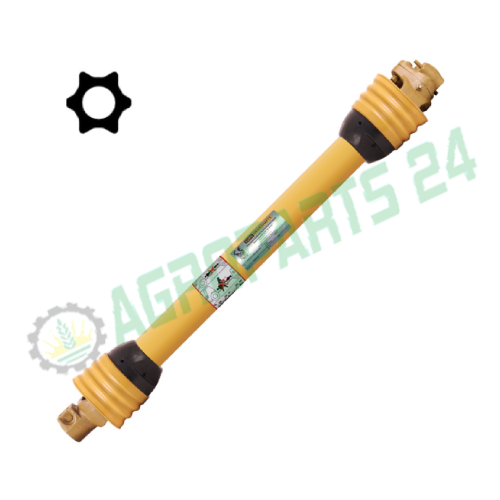

PTO shaft – star profile 1240 Nm, shear bolts clutch
Dimensions:
- Insertion fork tractor side: 44,4 mm 1 3/4”, 6 splines – sliding pin
- Insertion fork device side: 44,4 mm 1 3/4”, 6 splines – sliding pin
- Cross: 34,9 x 106,3 mm
- Outer profile tube: 61,0 x 47,0 mm
- Inner profile tube: 51,0 x 37,0 mm
- L=1010 mm, L1=810 mm
- L = total length pushed in
- L1 = from cross to cross
All spare parts for this PTO shaft can be ordered from us!
