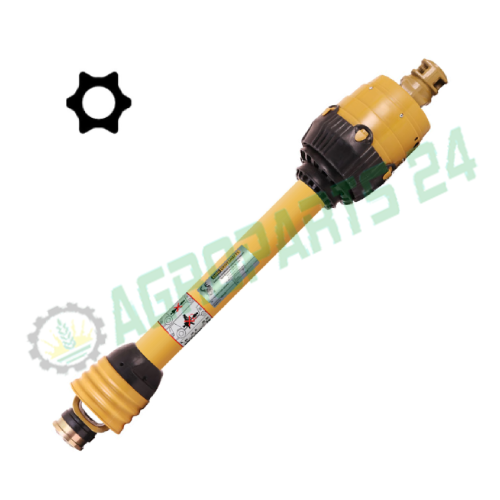

PTO shaft – star profile 830 Nm, 1 x wide angle joint
Dimensions:
- Insertion fork tractor side: 34,9 mm 1 3/8″, 6 splines – sliding pin
- Insertion fork device side: 34,9 mm 1 3/8″, 6 splines – sliding pin
- Cross: 27,0 x 94,0 / 32,0 x 76,0 mm
- Outer profile tube: 61,0 x 47,0 mm
- Inner profile tube: 51,0 x 37,0 mm
- L=1510 mm, L1=1310 mm
- L = total length pushed in
- L1 = from cross to cross
All spare parts for this PTO shaft can be ordered from us!
