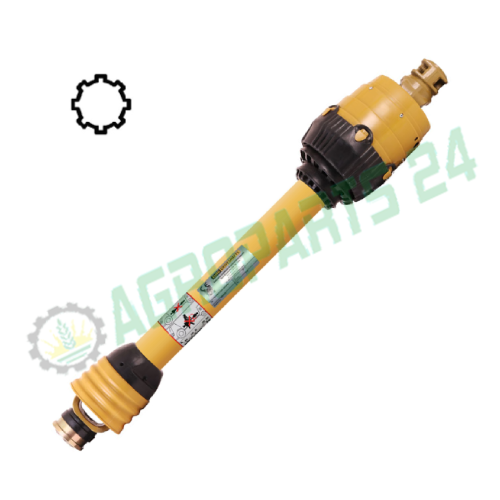

PTO shaft spline cross 27×94 / 32×76 L=1410mm S6 (1 3/8″) 1 x wide angle joint

PTO shaft – spline profile 900 Nm, 1 x wide angle joint

Dimensions:

• Insertion fork tractor side: 34,9 mm 1 3/8″, 6 splines – sliding pin
• Insertion fork device side: 34,9 mm 1 3/8″, 6 splines – sliding pin
• Cross: 27,0 x 94,0 / 32,0 x 76,0 mm
• L=1410 mm, L1=1210 mm
• L = total length pushed in
• L1 = from cross to cross

All spare parts for this PTO shaft can be ordered from us!
